SYD8801 datasheet

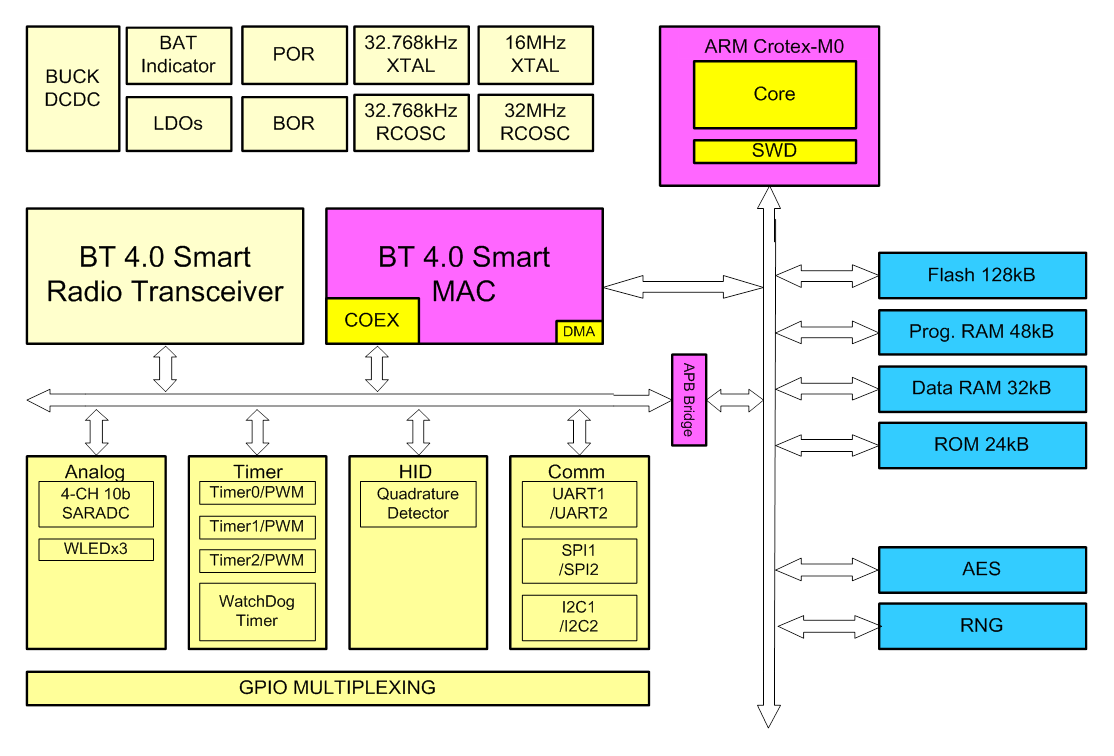

Architecture:

Package:

QFN48

   Key Features

§  Fully qualified Bluetooth Low Energy 4.0 peripheral device

§  Up to 98dBm link budget, 4dBm max. TX output power, -94dBm RX sensitivity(no desense)

§  Sub 10mA TRx radio current

§  Cortex M0 32-bit MCU with max. 32MHz clock rate

§  Low power and excellent performance 2.4GHz transceiver with built-in balun for compact layout area and low BOM cost;

§  2 channel 10-bit SAR ADC

§  Highly integrated SOC with 128kB Flash and 80kB SRAM

§  16MHz and 32.768kHz crystal oscillator circuit with on-chip loading capacitors, no external loading capacitors needed

§  Quadrature Decoder

§  DCDC converter, Boost or Buck Mode

§  Built in 32MHz and 32.768kHz RC oscillator

§  Communication interface options

§  Master I2C x2

§  Master Two/Four-Wire SPI x2

§  UART x2

§  Digital peripherals

§  LED x3

§  PWM x3

§  Support Serial Wire (SW) debug mode
